Product weight
1.5kg
Product size
The outer packaging size is 32107cm

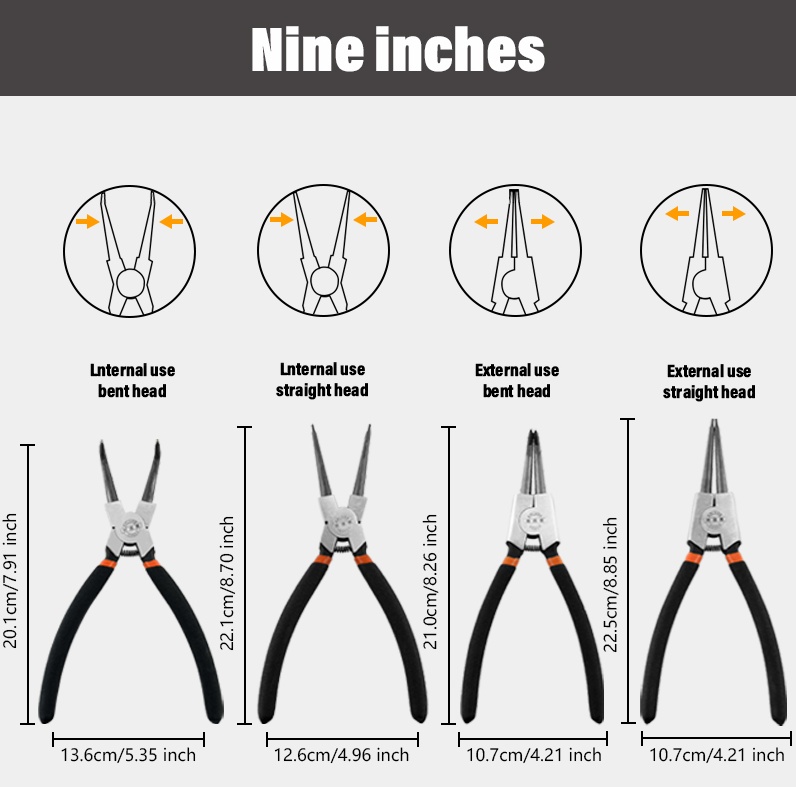

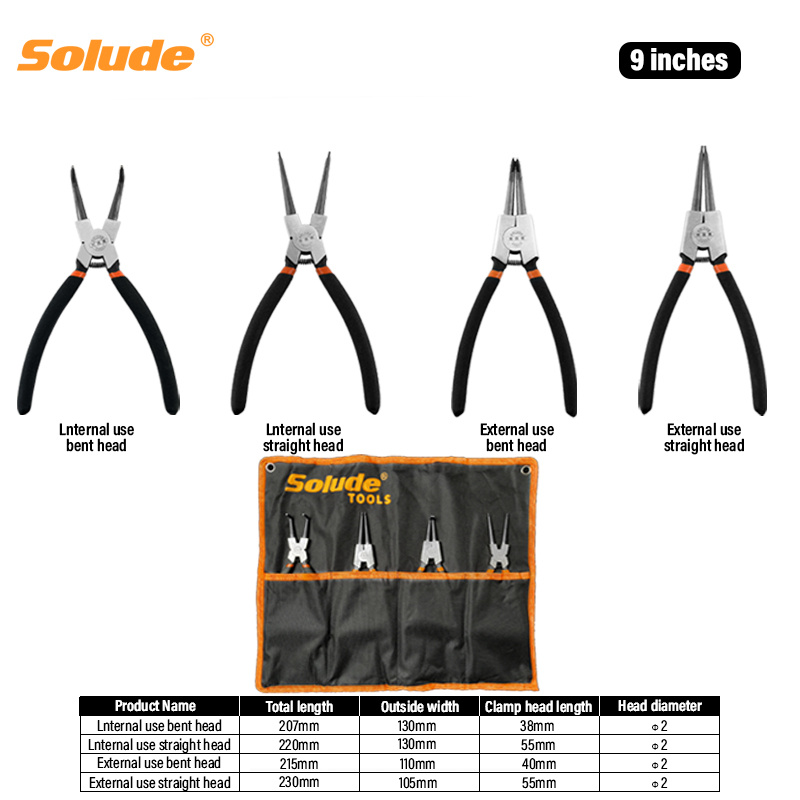

Specific specifications and uses of card spring pliers

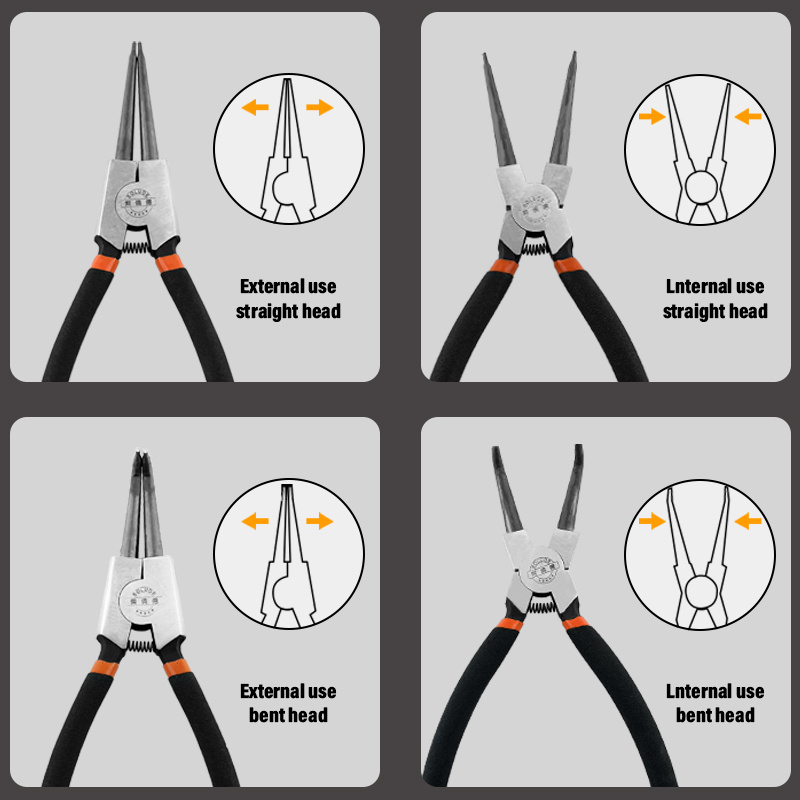

Internal curved mouth spring pliers:
Length: The overall length is about 20.1cm (7.91 inches), and the length of the clamp head is about 13.6cm (5.35 inches).
Purpose: Suitable for disassembling and installing snap springs in internal spaces. The design of the curved mouth facilitates flexible operation in narrow and angled spaces, and can accurately clamp the internal snap spring.
Internal straight mouth clamp pliers:
Length: The overall length is about 22.1cm (8.70 inches), and the length of the clamp head is about 12.6cm (4.96 inches).
Purpose: Mainly used for handling card springs in internal spaces, the straight mouth structure is suitable for relatively open internal spaces, making it easy to insert and operate, and for clamping, installing, and other work on internal card springs.
External curved mouth clip pliers:
Length: The overall length is about 21.0cm (8.26 inches), and the length of the clamp head is about 10.7cm (4.21 inches).
Purpose: Designed for external card spring operation, the curved mouth can more conveniently access the card spring in complex external environments, suitable for some external card spring disassembly and installation scenarios with angles or complex spaces.
External straight mouth clip pliers:
Length: The overall length is about 22.5cm (8.85 inches), and the length of the clamp head is about 10.7cm (4.21 inches).
Purpose: Used for handling external snap springs, the straight mouth can directly and quickly clamp the external snap spring. In relatively open external spaces, it is efficient and convenient to use, and can be used for snap spring installation and removal operations.
Product Features
Four different types of card spring pliers combinations, covering different needs for internal and external use, curved mouth and straight mouth, can meet the operation of card springs under various complex working conditions and improve work efficiency.
The clamp body is made of high-quality steel, sturdy and durable, with good wear and deformation resistance, ensuring long-term use.
The handle part adopts ergonomic design, with a black handle paired with an orange anti slip area for comfortable grip. It can effectively reduce hand fatigue during operation and provide better grip and handling stability.
